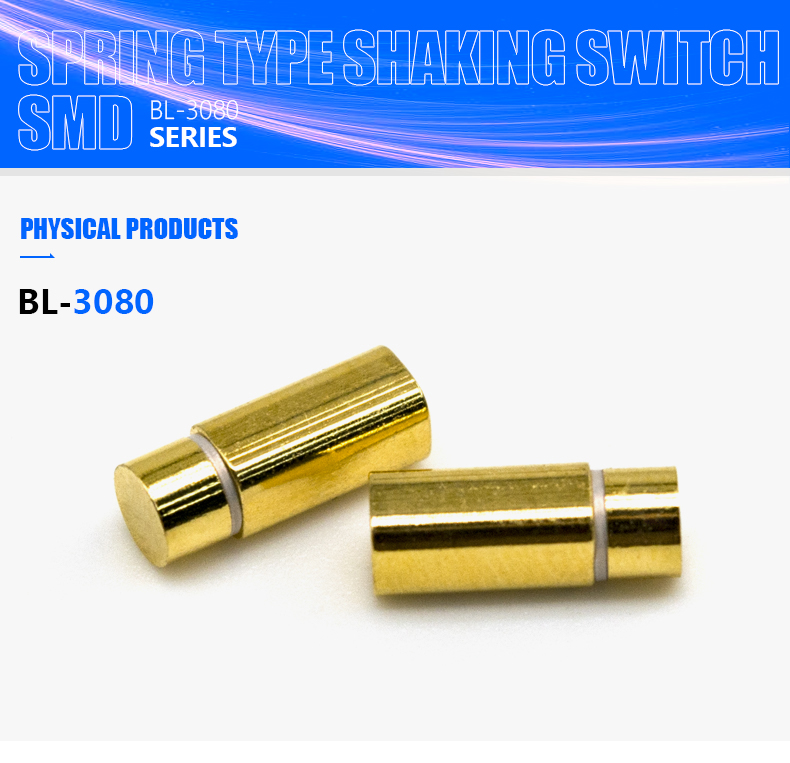

BL-3080メーカーは、パワーバンクと電子タバコ用のSMD SPRING TYPE振動スイッチを供給しています

• Model Number:BL-3080
• Place of Origin:Guangdong, China
• Brand Name:Beelee
• Voltage:<12 V
• Current:<20 mA
• Conductive time:about 2ms
• Closed resistance:0-200 ohm
• Open resistance:>10M ohm
• Welding humidity:260°C ±10°C
• Welding time:2-2.5 seconds
• Operating Temperature:-40°C to 80°C

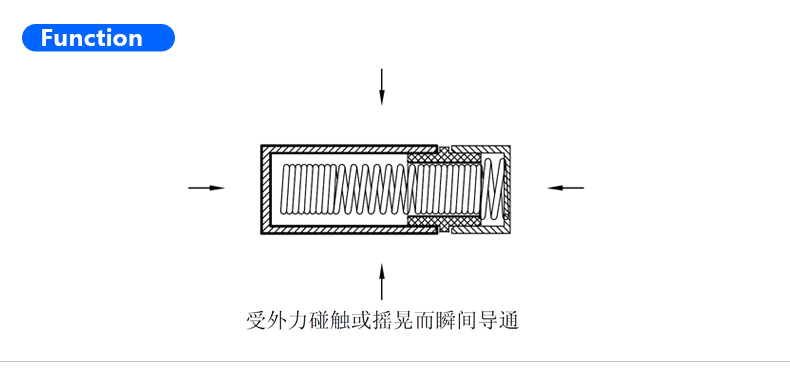

This series of switches are in an open-circuit OFF state when they are at rest. When they are touched by an external force and reach the corresponding vibration force, or when the moving speed reaches an appropriate off (eccentric) force, the conductive pins will produce instant conduction and become an instant ON state; when external force When it disappears, the switch returns to the open-circuit OFF state.

01.BL-3080 series is a small size, spring type, non-directional vibration induction trigger switch, which can be triggered at any angle.
02.This series of switches are in an open-circuit OFF state when they are at rest. When they are touched by an external force and reach the corresponding vibration force, or when the moving speed reaches an appropriate off (eccentric) force, the conductive pins will produce instant conduction and become an instant ON state; when external force When it disappears, the switch returns to the open-circuit OFF state. 03.The switch life can reach 200,000 times under normal use.
04.It is suitable for toys, alarm devices, electronic scales and other electronic products.
