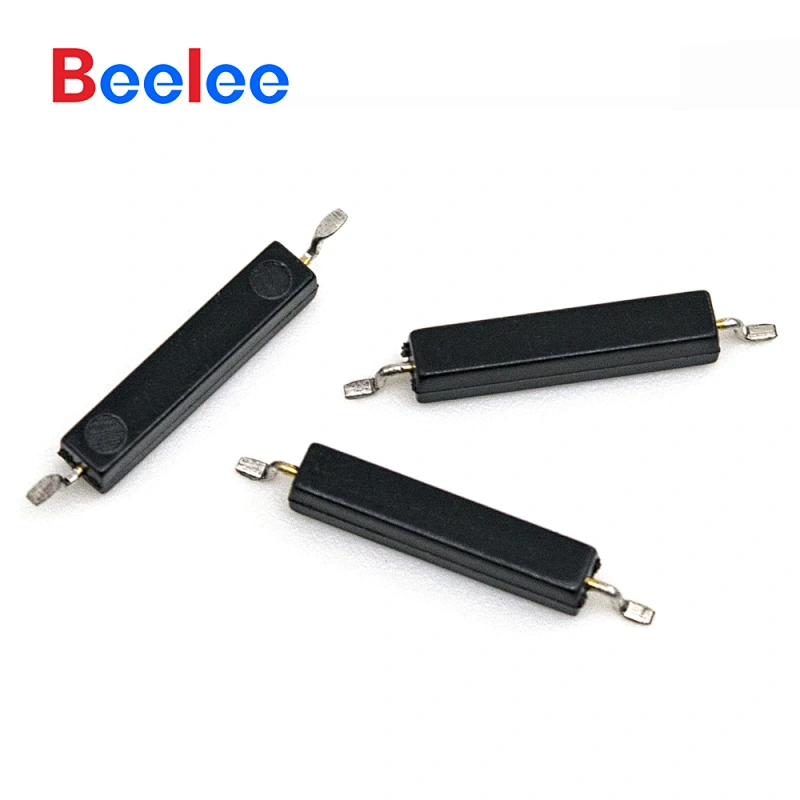

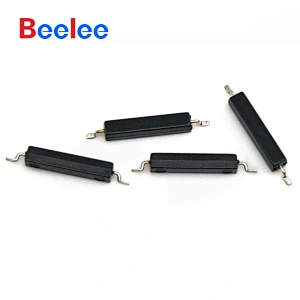

BL-JSFGHG-TP-2.3X11.5 magnetic normally open surface mount reed switch sensor 0.5A smd plastic reed switches

BL-JSFGHG-TP-2.3X11.5 magnetic normally open surface mount reed switch sensor 0.5A smd plastic reed switches

Model NO.: BL-JSFGHG-TP-2.3X11.5
Minimum order quantity: 1 piece

Bailing electronic reed switch manufacturer, providing glass reed switch, plastic seal reed switch, high pressure reed switch, magnetic reed switch, magnetic switch, support program customization, email to amanda@bl28.com.

Quantity:

Product Description

Certification:RoHS
Whether the smart:NO
Place of Origin:Guangdong, China
Brand Name:Beelee
Model Number:BL-JSFGHG-TP-2.3X11.5
Max. Current:0.5A
Max. Voltage:100V
Max.Contact Rating:10W
Max.Switching Current:0.5A
Max.Switching Voltage:100V
Max.Carry Current:0.5A
Breakdown Voltage:110/150 V
Pull in (at 20℃):7-15
Contact Resistancence:150mΩ

01.Micro changeover reed switch hermetically sealed in gas fulled envelope.Single-pole, double-throw (SPST-NO) type, normally open and normally closed contact.
02.The switch may be actuated by an electromagnet, a permanent magnet or a combination of both.The device is intended for use in sensors, relays, pulse counters or similar devices.

Parameters	Unit	BL-JSFGHG-TP-2.3X11.5
Contact Form		A
Contact Rating	W	10.0
Switching Voltage	V	100
Switching Current	A	0.5
Carry Current	A	0.5
Contact Resistancence	MΩ	150
Breakdown Voltagence	V	110/150
Pull in Value	AT	7-15
Insulation Resistance	MΩ	10000
Operating temperature	℃	-40~125
