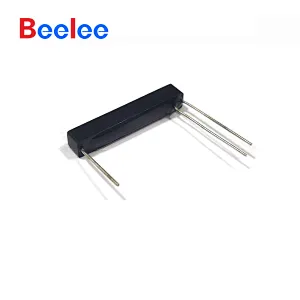

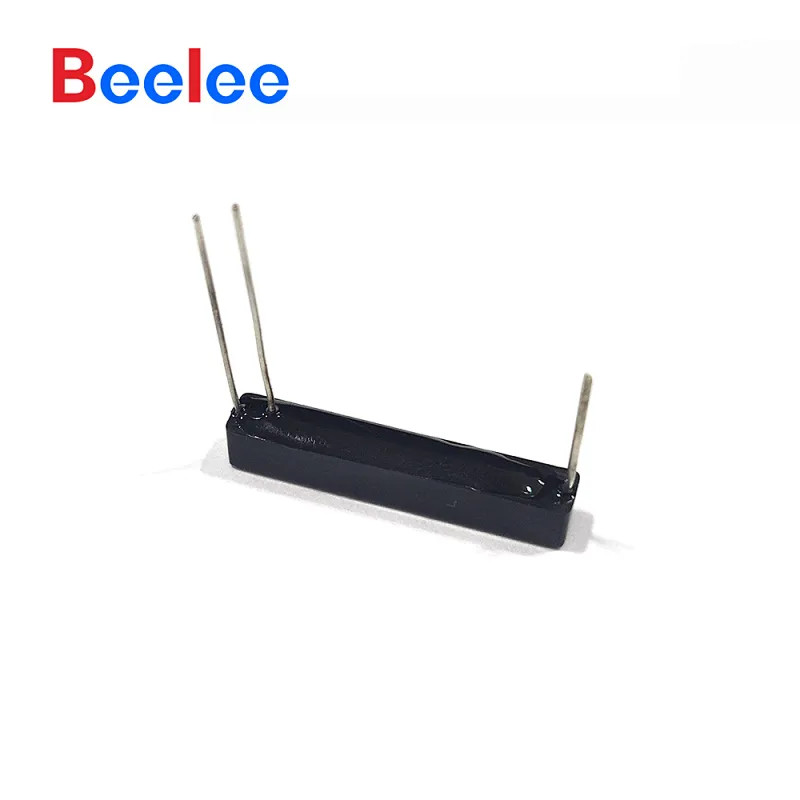

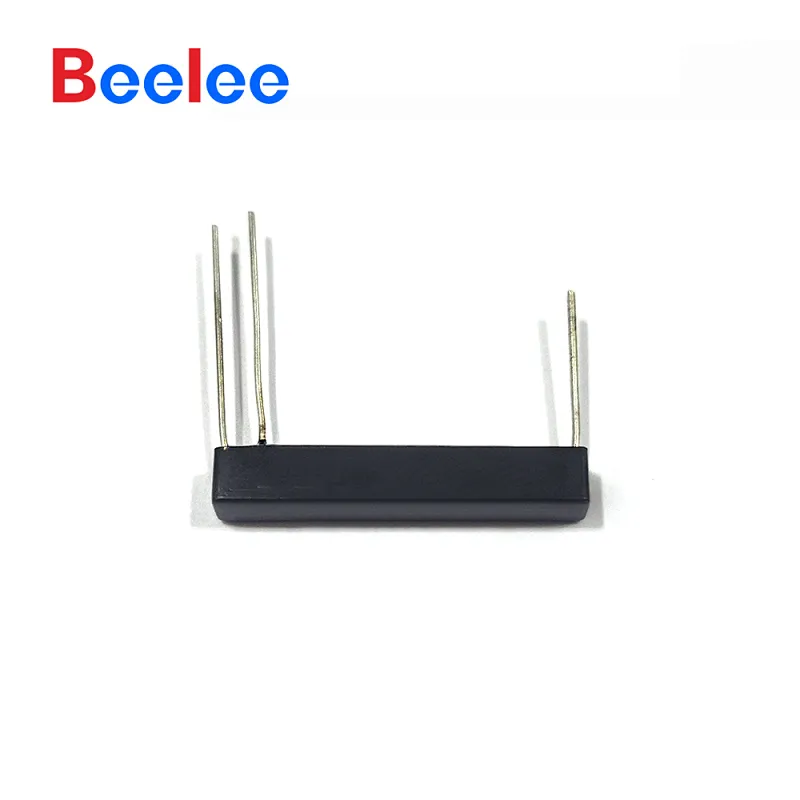

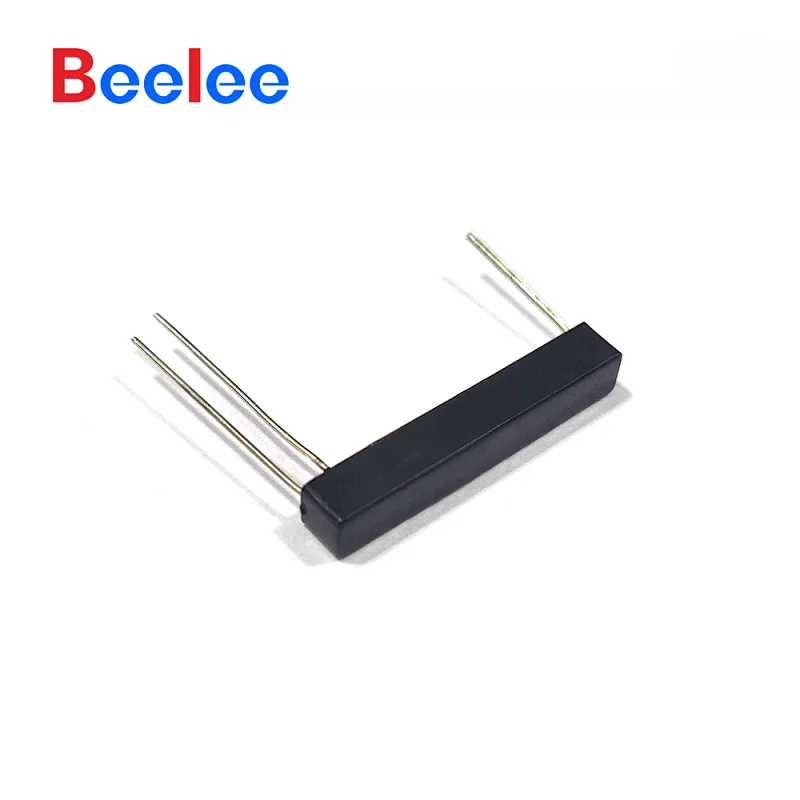

BL-JSFGHG-CC magnetic reed switch sensor Transfer surface mount reed switch 0.4A smd plastic reed switches

BL-JSFGHG-CC magnetic reed switch sensor Transfer surface mount reed switch 0.4A smd plastic reed switches

Model NO.: BL-JSFGHG-CC
Minimum order quantity: 1 piece

Bailing electronic reed switch manufacturer, providing glass reed switch, plastic seal reed switch, high pressure reed switch, magnetic reed switch, magnetic switch, support program customization, email to amanda@bl28.com.

Quantity:

Product Description

Certification:RoHS
Whether the smart:NO
Place of Origin:Guangdong, China
Brand Name:Beelee
Model Number:BL-JSFGHG-CC
Max. Current:0.4A
Max. Voltage:200VDC
Operate Range:10-20AT
Contact Rating:5W
Switching Voltage:175 Vdc / Vac
Switched Vdc/Vac (max):200/140
Contact Currence (max):0.5A
Carry Current (max):0.4A
Breakdown Voltage:120mΩ

01. Micro changeover reed switch hermetically sealed in gas fulled envelope.Single-pole, double-throw(SPST-NO/NC) type, normally open and normally closed contact.

02.The switch may be actuated by an electromagnet,a permanent magnet or a combination of both.The device is intended for use in sensors,relays,pulse counters or similar devices.

Parameters	Unit	BL-JSFGHG-CC
Contact Form		Form C
Max.Contact Rating	W	5
Max.Switching Voltage	Vdc / Vac	175
Max.Switching Current	A	0.4
Max.Contact Currence	A	0.5
Max.Contact Resistance	V	200
Min.Breakdown Voltage	mΩ	120
Pull-in Sensitivity	AT	10-20
